Cisco Catalyst 3560 Series交换机恢复出厂设置

Cisco Catalyst 3560 Series.webp

恢复出厂教程

使用终端软件进行连接

  1. 电脑COM口，通过console线连接到交换机console口，并打开超级终端调试窗口，我这里使用MobaXterm演示。

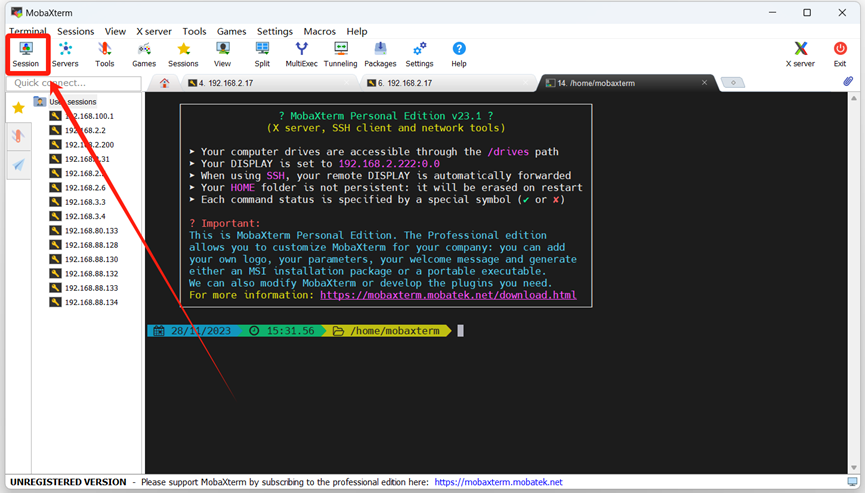

  2. 打开MobaXterm，点击Session。

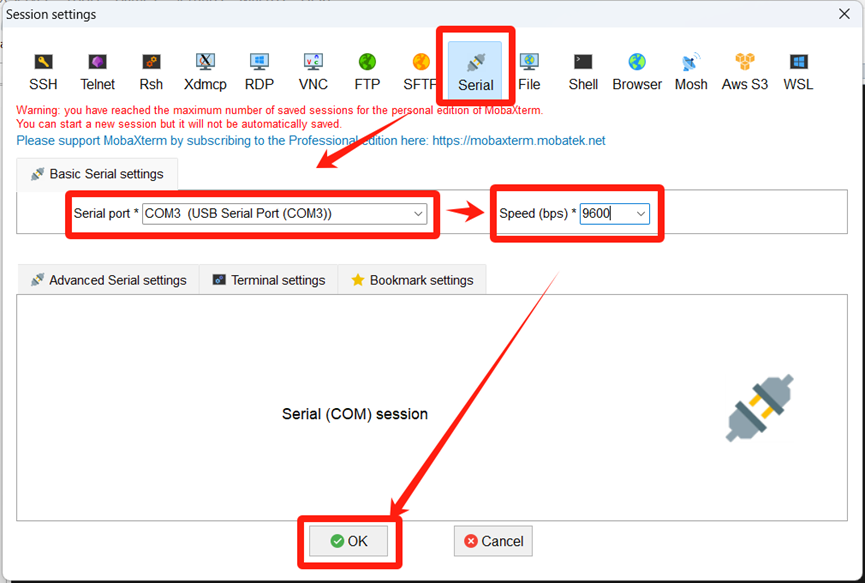

  3. 选择Serial，再选择对应的COM口，波特率选择9600，点击ok。

  4. 刚进入是黑屏的，敲一下Enter键就会出来显示画面。

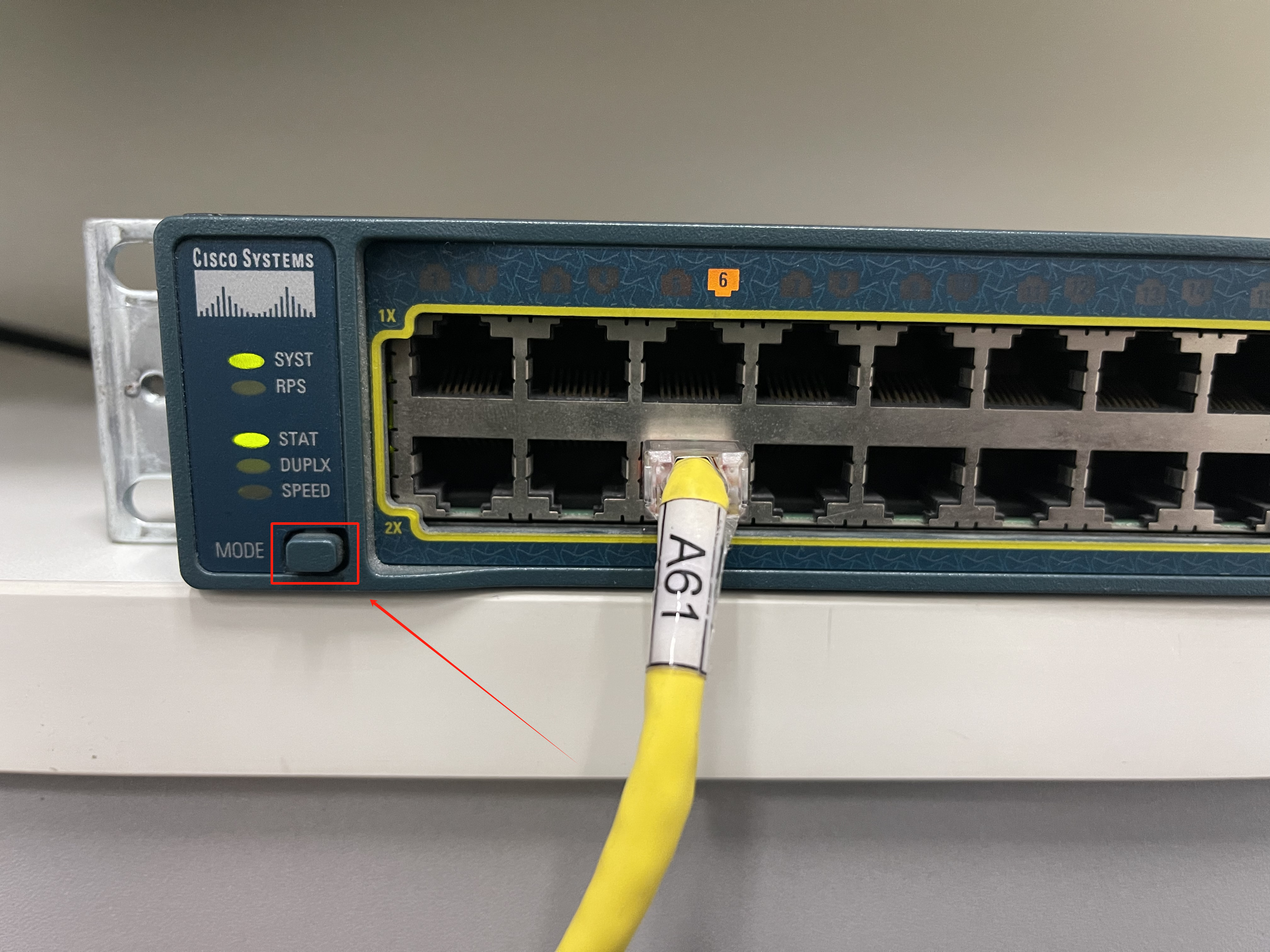

  5. 交换机接上电，上电过程中，按住交换机正面"MODE"按钮，直到syst灯快速闪烁。

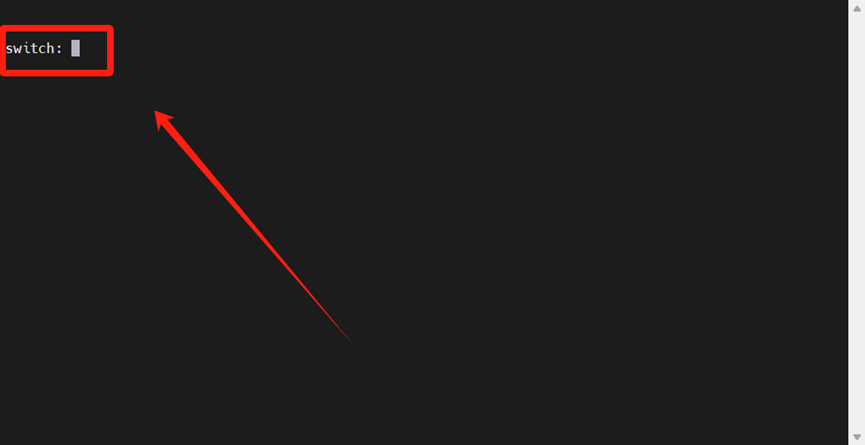

    松开"MODE"按钮（也可以关注终端界面显示字符了就可以松开"mode"按钮），进入到交换机的底层模式switch:

重置为出厂默认设置，而 VLAN 信息除外。

  1. 进入特权模式

    enable

  2. 输入命令进行清除，按Enter键进行确认。

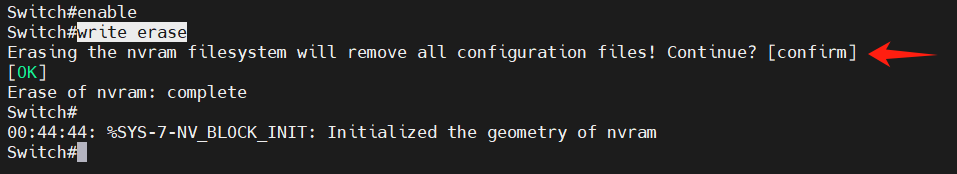

    write erase

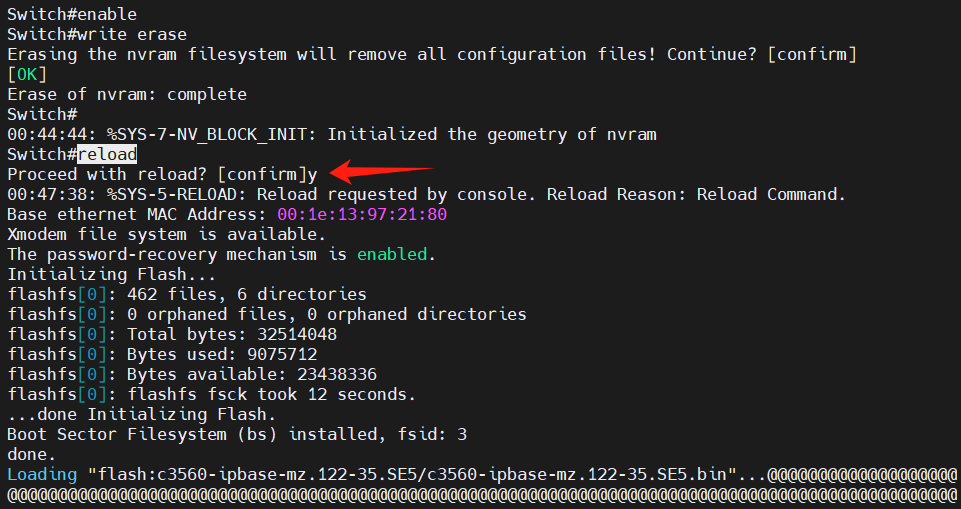

  3. 输入重启命令，然后按Enter键/y确认加载。

    reload

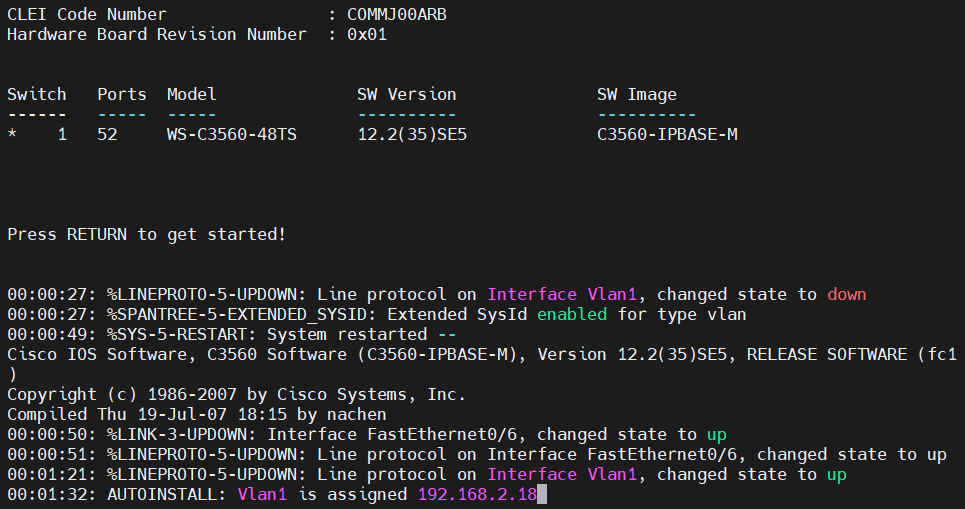

  4. 交换机将自动重启，稍等片刻就会重新显示连接画面。

  5. Cisco官方教程（和实际的略有不同）

    重置交换机配置
要将交换机重置为出厂默认设置，请发出e rase startup-config  或 write erase   命令。此命令不会清除引导变量，例如 config-register 和引导系统设置。

可以使用 boot 命令修改引导系统参数。在运行Cisco IOS软件的Catalyst 4500/4000和6500/6000系列交换机中，您可以将 config-register   命令。

本示例显示如何使用CLI将运行Cisco IOS软件的交换机重置为出厂默认设置 write erase 指令：

Cat2950# write erase
Erasing the nvram filesystem will remove all files! Continue? [confirm]y[OK]
Erase of nvram: complete
Cat2950#
Cat2950# reload

System configuration has been modified. Save? [yes/no]: n

!--- Do not save the configuration at this prompt. Otherwise, the switch !--- reloads with the current running configuration and does not reset to default.

Proceed with reload? [confirm]y

2w0d: %SYS-5-RELOAD: Reload requested

C2950 Boot Loader (C2950-HBOOT-M) Version 12.1(11r)EA1, RELEASE SOFTWARE (fc1)
Compiled Mon 22-Jul-02 18:57 by antonino
WS-C2950G-12-EI starting...


!--- Output suppressed.


32K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address: 00:05:DC:C9:79:00
Motherboard assembly number: 73-5781-08
Motherboard serial number: FAB0515A069
Model revision number: 02
Model number: WS-C2950-24
System serial number: FAB0517Q00B

--- System Configuration Dialog ---

Would you like to enter the initial configuration dialog? [yes/no]:n
00:00:16: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for type vlan
00:00:21: %SYS-5-RESTART: System restarted --
Cisco Internetwork Operating System Software
Cisco IOS (tm) C2950 Software(C2950-I6Q4L2-M)Version 12.1(19)EA1, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2003 by cisco Systems, Inc.
Compiled Tue 09-Dec-03 00:12 by yenanh

Press RETURN to get started!

00:00:37: %LINK-5-CHANGED: Interface Vlan1, changed state to administratively down
00:00:38: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
Switch>
Switch>
此时交换机配置已重置为出厂默认设置，而 VLAN 信息除外。

清除所有配置

  1. 同样和前面一样使用终端进行连接，并进去特权模式。

    enable

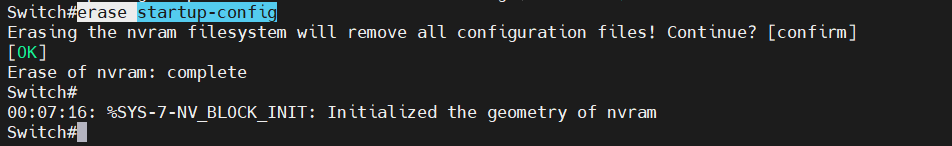

  2. 清除启动配置信息

    erase startup-config

    下面的提示按Enter键进行确认

  3. 删除vlan配置信息

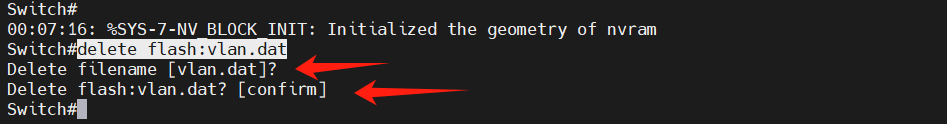

    delete flash:vlan.dat

    下面的两个提示按Enter键进行确认

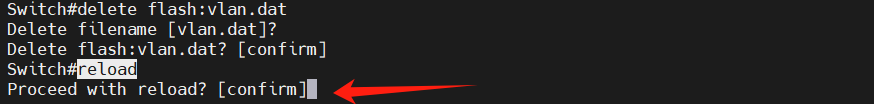

  4. 输入重启命令

    reload

    提示是否继续重新加载，按Enter键进行确认。

  5. 交换机将自动重启，并自动显示连接画面。

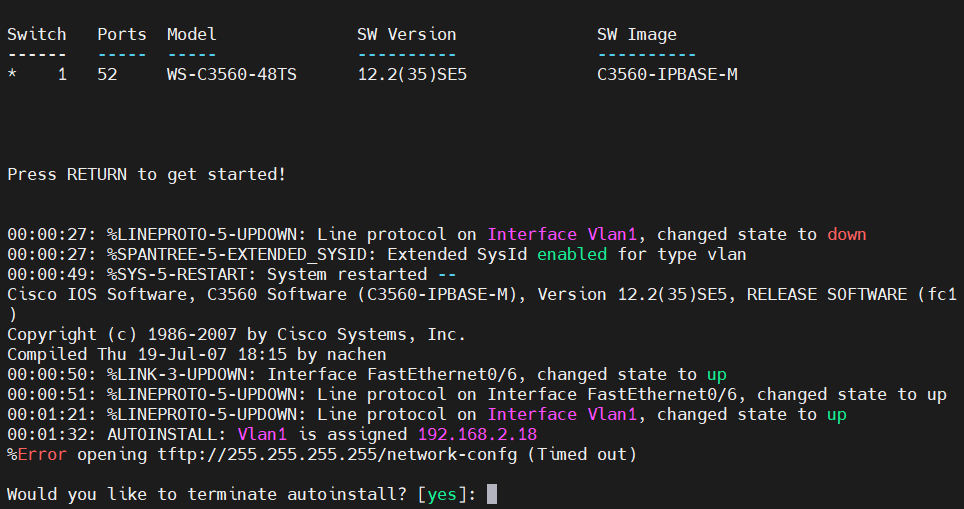

  6. 显示当前配置

    Switch#show running-config
Building configuration...

Current configuration : 1969 bytes
!
version 12.2
service config
no service pad
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
!
hostname Switch
!
!
no aaa new-model
system mtu routing 1500
ip subnet-zero
!
!
!
!
no file verify auto
spanning-tree mode pvst
spanning-tree extend system-id
!
vlan internal allocation policy ascending
!
interface FastEthernet0/1
!
interface FastEthernet0/2
!
interface FastEthernet0/3
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface FastEthernet0/25
!
interface FastEthernet0/26
!
interface FastEthernet0/27
!
interface FastEthernet0/28
!
interface FastEthernet0/29
!
interface FastEthernet0/30
!
interface FastEthernet0/31
!
interface FastEthernet0/32
!
interface FastEthernet0/33
!
interface FastEthernet0/34
!
interface FastEthernet0/35
!
interface FastEthernet0/36
!
interface FastEthernet0/37
!
interface FastEthernet0/38
!
interface FastEthernet0/39
!
interface FastEthernet0/40
!
interface FastEthernet0/41
!
interface FastEthernet0/42
!
interface FastEthernet0/43
!
interface FastEthernet0/44
!
interface FastEthernet0/45
!
interface FastEthernet0/46
!
interface FastEthernet0/47
!
interface FastEthernet0/48
!
interface GigabitEthernet0/1
!
interface GigabitEthernet0/2
!
interface GigabitEthernet0/3
!
interface GigabitEthernet0/4
!
interface Vlan1
 ip address dhcp
!
ip classless
ip http server
!
!
control-plane
!
!
line con 0
line vty 5 15
!
end

Switch#


👇👇👇
